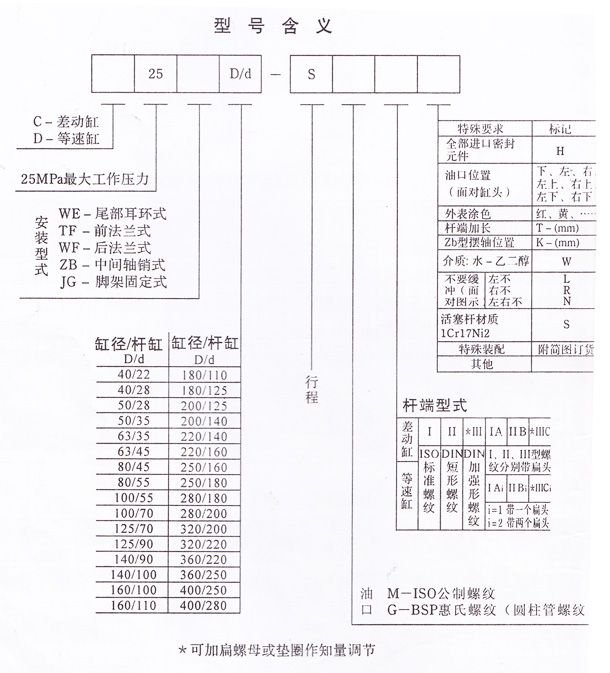

C25、D25系列高壓重型液壓缸
規(guī)格/技術(shù)參數(shù)
|
缸徑Dmm
|
桿徑dmm
|
面積比=A/A2
|
活塞面積 |
活塞桿面積
A1 cm2 |
環(huán)形面積
A2 cm2 |
工作壓力MPa
|
|||||||||
|
5
|
10
|
15
|
20
|
25
|
|||||||||||
|
推力KN
|
拉力KN
|
推力KN
|
拉力KN
|
推力KN
|
拉力KN
|
推力KN
|
拉力KN
|
推力KN
|
拉力KN
|
||||||
|
F1
|
F2
|
F1
|
F2
|
F1
|
F2
|
F1
|
F2
|
F1
|
F2
|
||||||
|
40
|
22
|
1.4
|
12.57
|
3.80
|
8.77
|
6.28
|
4.38
|
12.56
|
8.76
|
18.84
|
13.14
|
25.12
|
17.52
|
31.42
|
21.90
|
|
28
|
2
|
6.16
|
6.41
|
3.20
|
6.40
|
9.60
|
12.80
|
16.00
|
|||||||
|
50
|
28
|
1.4
|
19.63
|
6.16
|
13.47
|
9.82
|
6.74
|
19.64
|
13.48
|
29.46
|
20.22
|
39.28
|
26.96
|
49.10
|
33.70
|
|
35
|
2
|
10.18
|
9.45
|
4.73
|
9.46
|
14.19
|
18.92
|
23.56
|
|||||||
|
63
|
35
|
1.4
|
31.17
|
10.18
|
20.99
|
15.58
|
10.50
|
31.17
|
21.00
|
46.75
|
31.50
|
62.34
|
42.00
|
77.90
|
52.50
|
|
45
|
2
|
15.90
|
15.27
|
7.63
|
15.26
|
22.89
|
30.52
|
38.15
|
|||||||
|
80
|
45
|
1.4
|
50.26
|
15.90
|
34.36
|
25.13
|
17.18
|
50.27
|
34.36
|
75.40
|
51.54
|
100.54
|
68.72
|
125.65
|
85.90
|
|
55
|
2
|
24.63
|
25.63
|
12.82
|
25.64
|
38.46
|
51.28
|
64.10
|
|||||||
|
100
|
55
|
1.4
|
78.54
|
24.63
|
53.91
|
39.27
|
26.95
|
78.54
|
53.90
|
117.81
|
80.85
|
157.08
|
107.80
|
196.35
|
134.75
|
|
70
|
2
|
38.48
|
40.06
|
20.03
|
40.06
|
60.09
|
80.12
|
100.15
|
|||||||
|
125
|
70
|
1.4
|
122.72
|
38.48
|
84.24
|
61.35
|
42.10
|
122.70
|
84.20
|
184.05
|
126.30
|
245.40
|
168.40
|
306.75
|
210.50
|
|
90
|
2
|
63.62
|
59.10
|
29.55
|
59.10
|
88.65
|
118.20
|
147.75
|
|||||||
|
140
|
90
|
1.4
|
153.94
|
63.62
|
90.32
|
76.95
|
45.15
|
153.90
|
90.30
|
230.85
|
135.45
|
307.80
|
180.60
|
384.75
|
225.80
|
|
100
|
2
|
78.54
|
75.40
|
37.70
|
75.40
|
113.10
|
150.80
|
188.50
|
|||||||
|
160
|
100
|
1.6
|
201.06
|
78.54
|
122.52
|
100.50
|
61.25
|
201.00
|
122.50
|
301.05
|
183.75
|
402.00
|
245.00
|
502.50
|
306.30
|
|
110
|
2
|
95.03
|
106.03
|
53.00
|
106.00
|
159.00
|
212.00
|
265.00
|
|||||||
|
180
|
110
|
1.6
|
254.47
|
95.03
|
159.44
|
127.23
|
79.70
|
254.47
|
159.40
|
381.70
|
239.10
|
508.94
|
318.86
|
636.17
|
398.60
|
|
125
|
2
|
122.72
|
131.75
|
65.87
|
131.75
|
197.60
|
263.50
|
329.38
|
|||||||
|
200
|
125
|
1.6
|
314.16
|
122.72
|
191.44
|
157.05
|
95.70
|
314.16
|
191.40
|
471.15
|
287.10
|
628.20
|
382.80
|
785.25
|
478.40
|
|
140
|
2
|
153.94
|
160.22
|
80.10
|
160.20
|
240.30
|
320.40
|
400.55
|
|||||||
|
220
|
140
|
1.6
|
380.13
|
153.94
|
226.19
|
190.00
|
113.00
|
380.10
|
226.20
|
570.20
|
339.00
|
760.26
|
452.38
|
950.33
|
565.48
|
|
160
|
2
|
201.06
|
179.07
|
89.53
|
179.00
|
268.60
|
358.14
|
447.68
|
|||||||
|
250
|
160
|
1.6
|
490.87
|
201.06
|
289.81
|
245.40
|
144.90
|
490.87
|
289.80
|
736.30
|
434.70
|
981.70
|
579.60
|
1227.20
|
724.53
|
|
180
|
2
|
254.47
|
236.40
|
118.20
|
236.40
|
354.60
|
472.80
|
591.00
|
|||||||
|
280
|
180
|
1.6
|
615.75
|
254.47
|
361.28
|
307.80
|
180.60
|
615.75
|
361.30
|
923.63
|
341.90
|
1231.50
|
722.56
|
1539.40
|
903.20
|
|
2003
|
2
|
314.16
|
301.59
|
150.80
|
301.60
|
452.40
|
603.20
|
754.00
|
|||||||
|
320
|
2003
|
1.6
|
804.25
|
314.16
|
490.09
|
402.10
|
245.00
|
804.25
|
490.00
|
1206.40
|
735.10
|
1608.50
|
980.20
|
2010.60
|
1225.20
|
|
220
|
2
|
380.13
|
424.12
|
212.00
|
424.00
|
636.20
|
848.20
|
1060.30
|
|||||||
|
360
|
220
|
1.6
|
1017.88
|
380.13
|
637.75
|
508.90
|
318.90
|
1017.90
|
637.80
|
1526.80
|
956.60
|
2035.80
|
1257.50
|
2554.70
|
1594.40
|
|
250
|
2
|
490.87
|
527.01
|
263.50
|
527.00
|
790.50
|
1054.00
|
1317.50
|
|||||||
|
400
|
250
|
1.6
|
1256.64
|
490.87
|
765.77
|
628.30
|
382.90
|
1256.60
|
765.80
|
1885.00
|
1148.70
|
2513.30
|
1531.50
|
3141.60
|
1914.40
|
|
280
|
2
|
615.75
|
640.89
|
320.40
|
640.90
|
961.30
|
1281.80
|
1602.20
|
|||||||
|
缸徑D
|
40
|
50
|
63
|
80
|
100
|
125
|
140
|
160
|
180
|
200
|
220
|
250
|
280
|
320
|
360
|
400
|
|
|
桿徑d
|
22/28
|
28/35
|
35/45
|
45/55
|
55/70
|
70/90
|
90/100
|
100
/110 |
110
/125 |
125
/140 |
140
/160 |
160
/180 |
180
/200 |
200
/220 |
220
/250 |
||
